It has an independent system for activating the hydraulic motors, adjustable gauge, adjustable mat width (80cm or 40cm), and steel mat that allows working in low dosages - an unprecedented distribution technology patented by Baldan, where we have developed a staggered "V" shaped flight that allows for a homogeneous and uninterrupted flow of material.
The equipment also has a precision management system allowing the application at a variable rate.
Check out the main highlights and unique features of the product.
Swing / Swivel
Swing / Swivel
Swing / swivel Tandem running system that allows following
the terrain irregularities.
Swing / swivel Tandem running system that allows followingthe terrain irregul...
Swing / Swivel
Swing / swivel Tandem running system that allows following
the terrain irregularities.
Granulated Kit
Granulated Kit
Stainless steel disc for distribution of granulated and deflector for fertilizer application and fine seed launching.
Stainless steel disc for distribution of granulated and deflector for fertili...
Granulated Kit
Stainless steel disc for distribution of granulated and deflector for fertilizer application and fine seed launching.
Oil tank
Oil tank
Oil tank with independent hydraulic system for tractors that do not have the necessary flow for the operation of hydraulic engines. (optional)
Oil tank with independent hydraulic system for tractors that do not have the ...
Oil tank
Oil tank with independent hydraulic system for tractors that do not have the necessary flow for the operation of hydraulic engines. (optional)

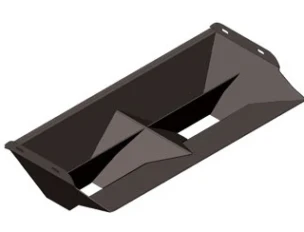

Deflector
Deflector
Deflector for lime spreading with detachable system.
Deflector for lime spreading with detachable system.
Deflector
Deflector for lime spreading with detachable system.
Non-slip ladder
Non-slip ladder
Side ladder with non-slip surface for material inspection.
Side ladder with non-slip surface for material inspection.
Non-slip ladder
Side ladder with non-slip surface for material inspection.
Synchronization of the discs
Synchronization of the disc...
Transmission of the distributor discs driven by a hydraulic motor and a triple gear box that maintains the synchronization of the discs.
Transmission of the distributor discs driven by a hydraulic motor and a tripl...
Synchronization of the discs
Transmission of the distributor discs driven by a hydraulic motor and a triple gear box that maintains the synchronization of the discs.
Hydraulic engine
Hydraulic engine
Hydraulic engine. For the operation of the DCF 12000 with a hydraulic engine, the tractor must have a hydraulic system with continuous flow and hydraulic pump from 40 to 50 L/min. If the tractor does not have these items, the DCF 12000 with hydraulic engine will only work with the independent system (optional).
Hydraulic engine. For the operation of the DCF 12000 with a hydraulic engine,...
Hydraulic engine
Hydraulic engine. For the operation of the DCF 12000 with a hydraulic engine, the tractor must have a hydraulic system with continuous flow and hydraulic pump from 40 to 50 L/min. If the tractor does not have these items, the DCF 12000 with hydraulic engine will only work with the independent system (optional).
The DCF 12000 is the best option for distributing limestone, fertilizers and fine seeds (such as pasture). The double wheelset system allows the distributor to adapt to any terrain without difficulty and its side ladder facilitates the inspection and supply of materials. Equipped with stainless steel discs for a more balanced distribution, it uses belt transmission or transmission box for greater distribution efficiency.
| Model | Load Capacity (m³) | Total Length (mm) | Total Width (mm) | Total Height (mm) | Load Capacity (m) | Approx. Weight (Kg) | Tractor Power (Hp) |
|---|---|---|---|---|---|---|---|
| DCF 12000 | 7 | 5650 | 2250 | 2607 | 1,80 - 3,00 | 2250 | 100 |
| Distribution Management System (Optional) | Application Range Belt Transmission (m) |
Application Range Triple Box Transmission (m) |
Distribution Flow L/min |
Tires |
|---|---|---|---|---|
| Variable rate Tribble | 7 - Dust 30 - Granulated |
14 - Dust 36 - Granulated |
12 - 1.200 | 12.5/80-R18 TL 10 Lonas |
| Variable rate Raven/Isobus | ||||
| Variable rate CR7 | ||||
| Taxa rate Agrosystem |
