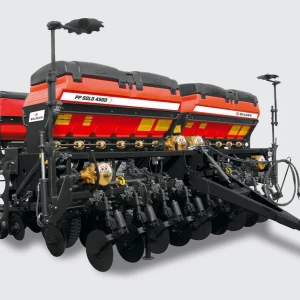

PP SOLO Speed Box 3rd Seed Box - Precision Row Crop Planter

Technical Specifications

Minimum spacing between lines 415mm
Minimum spacing between wheels 450mm
Working depth 0-120mm
Fertilizer application range 57 - 1700 Kg/Ha
Wheels set Military 7.0x16x10L
Height 2000mm



Model No. Lines Useful width (mm) Working width (mm) Total width
(mm)
Fertilizer tank capacity (L) 3rd Seed Box capacity
(L)
No. Wheels Approx. weight  (Kg) Tractor power(Hp)
Plastic Hooper Metalic Hooper
PPS 3rd Seed Box
4000
8 3390 3800 *4300 1240 1400 810 2 3450 **90-100
PPS 3rd Seed Box
4500
10 4060 4480 *5000 1500 1750 972 4 4365 **100-110
PPS 3rd Seed Box
5000
12 4940 5350 *6000 1860 2100 1140 4 5300 **120-150
PPS 3rd Seed Box
5500
13 5400 6300 *6500 1860 2100 1296 4 5820 **130-160
PPS 3rd Seed Box
6500
15 6300 6715 *7300 2250 2600 1458 6 8200 **160-190
PPS 3rd Seed Box 7500 17 7200 7615 *8200 2610 3000 1620 6 8480 **170-200

(*) The dimensions of the overall width (mm) comprise the seeder with line marker. The seeder without line marker should be reduced to 200 mm in dimensions.
(**) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.

Row Spacing

Model Nr. of Rows Spacing (mm)
4000 4 800/900/1000
  5 700/800
  6 500/550
  7 500/550
  8 *415/450
  9 *415



Model Nr. of Rows Spacing (mm)
4500 5 900/1000
  6 550/800
  7 600/650
  8 500/550
  9 *415/450/500
  10 *415/*430/450



Model Nr. of Rows Spacing (mm)
5000 6 *800/850/900/950
  7 700/750/800
  8 **550
  9 500/550/600
  10 *415/450/**550
  11 *415/450/500
  12 415/430/450
  13 *400



Model Nr. of Rows Spacing (mm)
5500 7 *800/850/900
  9 600/650
  10 500/550
  11 500/550
  12 *415/500
  13 *415/*430/450



Model Nr. of Rows Spacing (mm)
6500 8 800/900
  9 790
  10 *600
  11 600
  12 *500/550
  14 485
  15 *415/*430/450



Model Nr. of Rows Spacing (mm)
7500 9 800/850/900
  10 *750/800
  11 *600/650/700
  12 *600/650
  13 600
  14 500/550
  15 *500
  17 *415/*435/450

(*) Spacing marked with an asterisk might have an alteration up to 25mm at any row.
(**) Spacing marked with an asterisk might have an alteration up to 30mm at any row.
