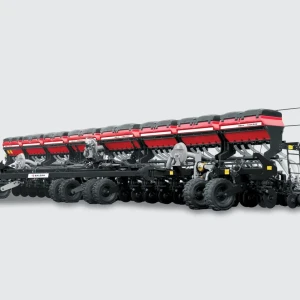

GIGA Air - Precision Row Crop Planter

Technical Specifications

Transport Length (mm) 6500 / 6700*
Useful Width (mm) 9450 a 19000
Working Depth (mm) 0-120



Model Nr of
Rows
Total
Width
(mm)
Total
Length
(mm)
Transport
Length
(mm)
Transport
Height
(mm)
Total
Height
(mm)
GIGA Air 22 10600 8600 10000 3280 2700
GIGA Air 30 14100 9600 12200 3280 2700
GIGA Air 34 16000 9600 12200 3280 2700
GIGA Air 42 19600 13600 17700 3300 2720



Model Nr of
Rows
Weight
aprox.
s/ sup.
carreg.
(kg)
Tracto Required
(Cv)
Seed Hopper
Capacity
(L)
Nr of
Wheels
(Un)
Tyres
(Measures)

Straight Conventional
GIGA Air 22 11800 180* 200* 3340 6 12 - 16,5 12 Lonas
GIGA Air 30 15500 240* 270* 4500 8 12 - 16,5 12 Lonas
GIGA Air 34 16200 280* 310* 5180 8 12 - 16,5 12 Lonas
GIGA Air 42 19700 340* 380* 6340 8 14 - 17,5 14 Lonas

*Approximate power (Hp) depends on normal situations for planting. It is possible to have variations to (+) and (-).
*Transport  width of the Planter with depth control wheel system on the double disc hub (optional) will be 6700mm.

Spacing

Model Nr of Rows Spacing (mm) Useful Width (mm)
GIGA Air 22 Rows 22 450 9450
  21 500 10000
  20 500 9500
  19 550 9900
  18 550 9350
  16 600 9000
  14 760 9880



Model Nr of Rows Spacing (mm) Useful Width (mm)
GIGA Air 30 Rows 30 450 13050
  29 450 12600
  26 500 12500
  27 500 13000
  24 550 12650
  22 600 12600
  18 760 12920



Model Nr of Rows Spacing (mm) Useful Width (mm)
GIGA Air 34 Rows 34 450 14850
  33 450 14400
  31 500 15000
  30 500 14500
  28 550 14850
  26 600 15000
  20 760 14440



Model Nr of Rows Spacing (mm) Useful Width (mm)
GIGA Air 42 Rows 42 450 18450
  39 500 19000
  34 550 18150
  32 600 18600
  26 760 19000
