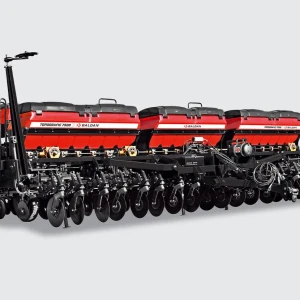

TOPOGRAFIC - Precision Row Crop Planter

Precision Row Crop Planter

Developed to work with great fertilizer and seed autonomy. All fertilizer and seed adjustments are made through the Speed Box system. The technology embedded in the seed tank offers greater accuracy in the soil and versatility in dosing seed quantities per linear meter.

Coupled 100% to terrain with rugged topography, furrower with fuse pin, double discs, turnstiles shut off by means of remote control, 20 ”cutting discs, tool box, general cleaning water device, articulated header, platform with extender streamlining and offering practicality at the time of supply, wheels that assist in the control of seed depth with angle adjustment and opening, “V” compacting wheels with angle adjustment, both dispense with the use of adjustment tools, offering greater practicality to the farmer.

Technical Specifications

Minimum Row Spacing (mm) 450
Ground Wheels Militar 700 x 16 x 10 lonas



Model Nr of
Rows
Useful
Width
(mm)
Working
Width
(mm)
Total
Width
(mm)
Fertilizer
Hopper

Capacity
(Lts)
Seed
Hopper
Capacity
(Lts)
Number
of
Wheels
Estimated
Weight
(kg)
Tractor
Required
(Hp)
4500 11 4500 4950 5300 1650 715 4 6857 105-130
5500 13 5400 5850 6400 1860 845 6 7831 130-150
6500 15 6300 6750 7100 2160 975 6 8511 145-180
7500 17 7200 7650 8400 2610 1105 8 9281 160-190
8500 19 8100 8550 8900 2920 1235 8 10152 175-220
9500 21 9000 9450 9800 3240 1365 8 11190 190-240

(*) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.

Optional: Automatic Shank.. Seed sensor. Titanium seed dispenser. Digital hectaremeter. Digital seed monitor.

Row Spacings

Model Version Nr of Rows Spacings (mm)
Topografic 4500 11 450
    10 500



Model Version Nr of Rows Spacings (mm)
Topografic 5500 13 450
    12 500



Model Version Nr of Rows Spacings (mm)
Topografic 6500 15 450
    14 500



Model Version Nr of Rows Spacings (mm)
Topografic 7500 17 450
    15 500



Model Version Nr of Rows Spacings (mm)
Topografic 8500 19 450
    17 500



Model Version Nr of Rows Spacings (mm)
Topografic 9500 21 450
    19 500
