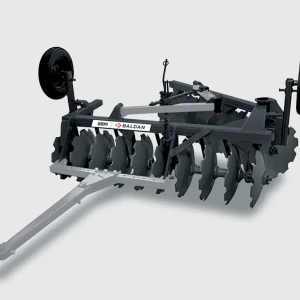

GRI-GRPI - Harrow



The BALDAN GRI / GRPI harrow is used for soil preparation and lump breaking after the use of chisels, especially due to its 270 mm spacing between discs. It has optional pistons for opening and closing of sections, and GRP model tires that help transport from one area to another. GR / GRPI is distinctive Baldan Quality.

Technical Specifications

Diameter of discs 24 "- 26" - 28 "
Shaft Diameter 1.5 / 8 "
Spacing between discs (GRI-GRPI) 270mm
Wheels set (GRP-GRPI) Simple



Model No. Discs Working depth (mm) Approx. weight   Tractor power(Hp)
24" (Kg) 26" (Kg) 28" (Kg)
GRI 12 150-250 -- 919 1011 73-75
GRI 14 150-250 -- 1020 1127 79-85
GRI 16 150-250 -- 1317 1414 95-108
GRI 18 150-250 -- 1477 1578 110-112
GRI 20 150-250 -- 1596 1644 116-126
GRI 24 150-250 -- 1791 1842 143-152
GRI 28 150-250 -- 2056 2143 160-180
GRPI 12 150-250 -- 1390 1425 73-75
GRPI 14 150-250 -- 1460 1503 79-85
GRPI 16 150-250 -- 1598 1641 95-108
GRPI 18 150-250 -- 1710 1760 110-112
GRPI 20 150-250 -- 1785 1840 116-126
GRPI 24 150-250 -- 1920 1990 143-152
