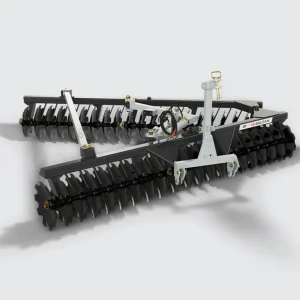

SP - Drag Type Offset Leveling Disc Harrow with Hydraulic Opening

Drag Type Offset Leveling Disc Harrow with Hydraulic Opening

Developed with a hydraulic opening system that allows adjusting the cutting angle, it is capable of shredding, leveling and incorporating agricultural inputs, leaving the area in ideal conditions for sowing. It has sections of discs that can be mixed, cut and smoothed according to the needs of each farmer, ensuring high performance and high production.

Technical Specifications

Working Depth (mm)   50 - 150
Axle Diameter  (Ø) 1.1/4”
Diameter Of Discs (Ø)  18” - 20” - 22”



Model NR Of Discs Spacing Between Discs Working Width

Approximate Weight
kg
Tractor Power

    mm mm Kg Kg kg Hp
        18'' 20” 22''
SP 28   175  2350  707 753   784 65 - 70
SP 32   175  2700  815  868 905  73 - 80
SP 36  175  3000  900  960 1001  85 - 90
SP 42 175   3600  1019 1089  1137  95 - 105
SP  28 200  2700 794  840   871 70 - 75
SP  32 200 3100   860 913   950 80 - 85
SP  36 200 3500  963  1023  1064  90 - 100
