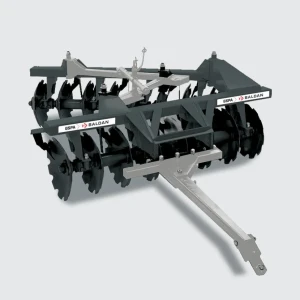

GSPA - Super Heavy Harrow

The BALDAN GSPA - Super Heavy Harrow was born from the desire of our engineers and field needs to design a harrow that could withstand the most severe working conditions, for this purpose the GSPA was created, with a spacing of 430 mm between discs and structure of steel tubular beams with the highest quality standard. It works in degraded pasture land, restoration of sugarcane plantations, first-year areas, cotton stumps, among others, and makes the harrowing to a greater depth, so that there is a full incorporation by residues. GSPA has cylinder that supports the opening and closing sections of the discs.

Technical Specifications:

Spacing between discs 430mm
Shaft Diameter 2.1 / 2 "
Diameter of discs 32 "- 34" - 36 "
Working depth 200 - 320mm
Concave discs 9.0 and 12.0 mm



Model No. Discs Working width (mm) Approx. weight Tractor power(Hp) Tractor power(Hp)
32" (Kg) 34" (Kg) 36" (Kg) Tires Belt
GSPA 10 1900 2680 2726 2784 110-130(Hp) 73-80(Hp)
GSPA 12 2350 2912 3002 3070 125-156(Hp) 90-96(Hp)
GSPA 14 2800 3330 3400 3450 145-182(Hp) 100-112(Hp)
GSPA 16 3200 3760 3840 3900 170-208(Hp) 120-130(Hp)
GSPA 18 3650 3991 4126 4228 190-235(Hp) 135-145(Hp)
GSPA 20 4100 4324 4474 4580 215-265(Hp) 150-160(Hp)
