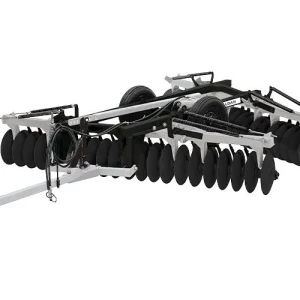

NVAM / NVAP - Leveling Disc Harrow Remote Control



NVAM / NVAP - Leveling Disc Harrow Remote Control

Constructed of tubular beams of high strength and high quality standard to streamline operations and ensure an ideal depth control through its tires connected to the pistons.

Technical Specifications

Model NR of Discs  Working Width (mm) Disc Spacing (mm) Approx. Weight. (kg) 20''         22'' Tractor Retired (Hp)
NVAM 36  3000  175  1557  -  1688  90 - 95
NVAM 40 3425 175  1600  -  1741  95 - 110
NVAM 42 3600  175  1687  -  1828  110 - 118
NVAM 42 4100 175  1820  -  1988  118 - 126
NVAM 44 3760  175  1714  -  1859  115 - 123
NVAM 44 4300 200  1809  -  1947  123 - 132
NVAM 48 4100  175 1885  -  2047  125 - 135
NVAM 48 4700 200 1919  -  2081  135 - 145
NVAM 52 4450 175 1953  -  2124  135 - 145
NVAM 52 5100 200 1958  -  2129  145 - 156
NVAP 56 4810  175 1951  -  2136  145 - 150
NVAP 42 4100 200 2097  -  2097  118 - 126
NVAP 44 3760  175 2006  -  2082  115 - 123
NVAP 44 4300 200 1991  -  2136  123 - 132
NVAP 48 4700  175 2018  -  2180  125 - 135
NVAP 48 4700  200 2070  -  2232  135 - 145
NVAP 52 4450  175 2096  -  2267  135 - 145
NVAP 52 5100 200 2183  -  2354  145 - 156
NVAP 56 4810  175 2200  -  2386  145 - 150
Axle Diameter (Ø)  1.1/4”
Disc Diameter(Ø)  20” - 22”
Working Depth (mm) 50 - 150
