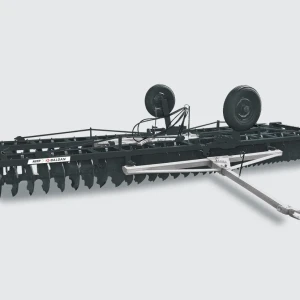

NVF NVF-P - Drag Type Disc Harrow with Permanent Flotation

The BALDAN NVF NVF-P Floating Leveling Harrow was born from the need of farmers to have a high-performance harrow as the existing ones and at the same time had fluctuations in both directions, whose main characteristic of high yield and excellent performance, could also be used for the incorporation of herbicides. This harrow can be coupled with tires for transport and piston for the opening of sections.

Technical Specifications

Disc Spacing  (mm) 200
Axle Diameter (ø) 1.1/4"
Working Depth (mm) 50 - 150
Ground Wheels Single



Model Nr of
Discs
Working
Width
(mm)
Approximate Weight
(Kg)
Tractor
Power
(Hp)
NVF 20" NVF 22" NVFP 20" NVFP 22"
NVF / NVFP 40 3900 1450 1500 1650 1700 96 - 120
NVF / NVFP 44 4300 1540 1600 1740 1800 106 - 132
NVF / NVFP 48 4700 1630 1700 1830 1900 115 - 144
NVF / NVFP 52 5100 1720 1800 1920 2000 125 - 156
NVF / NVFP 56 5500 1810 1900 2010 2100 134 - 168
NVF / NVFP 60 5900 1900 2000 2100 2200 144 - 180
NVF / NVFP 64 6300 1990 2100 2190 2300 154 - 192
NVF / NVFP 68 6700 2080 2200 2280 2400 163 - 204
NVF / NVFP 72 7100 2170 2300 2370 2500 172 - 216
NVF TANDEM 88 8650 3400 3580 - - 210 - 230
NVF TANDEM 104 10200 3740 3900 - - 250 - 270
NVF TANDEM 120 11800 4365 4565 - - 270 - 305
