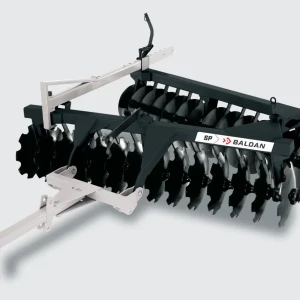

SP - Drag Type Offset Leveling Disc Harrow

The BALDAN SP Drag Type Offset Leveling Disc Harrow is absolute sales leader in its category because it has a special design; it can at once break lumps, level the terrain,  incorporate herbicides and others, leaving the area in ideal conditions for planting; it has sections of smooth and grooved discs to ensure high work performance, excellent daily yield, with two versions: drag or connected to the 3rd point in terrains difficult to maneuver.

Technical Specifications

Working Depth (mm) 50 - 150
Shaft Diameter (ø) 1.1/4"
Diameter of Discs (ø) 18" - 20" - 22"



Model Nr of
Discs
Working
Width
(mm)
Disc
Spacing
(mm)
Approx. Weight
(Kg)
Tractor
Power
(Hp)
18" 20" 22"
SP 20 1700 175 470 500 543 46-51
SP 24 2100 175 540 575 625 55-61
SP 28 2350 175 590 630 690 65-70
SP 32 2700 175 670 720 789 73-80
SP 36 3000 175 710 765 843 85-90
SP 42 3600 175 810 870 961 95-105
SP 20 1900 200 530 566 612 51-55
SP 24 2300 200 587 630 685 61-65
SP 28 2700 200 682 733 797 70-75
SP 32 3100 200 760 818 891 80-85
SP 36 3500 200 842 907 989 90-100
