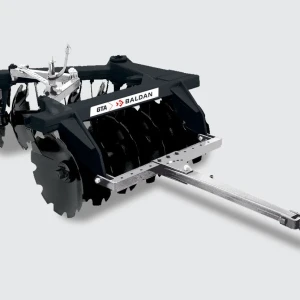

GTA - Heavy Harrow

The BALDAN GTA - Heavy Harrow was developed based on the need of farmers to have a deeper plowing for better incorporation of residues from previous crops. The models are produced with 340 mm spacing between discs and the special concavity of discs allows an excellent-quality work in any type of soil, special cleansers make the discs always work at maximum performance.

Technical Specifications

Spacing between discs 340mm
Working Depth 200 - 300 mm
Shaft Diameter 2.1 / 4 "
Diameter of discs 30” - 32” - 34”
Concave discs 7,5 - 9,0 - 12,0 mm



Model No. Discs Working width (mm) Approx. weight Tractor power(Hp)
30" (Kg) 32" (Kg) 34" (Kg)
GTA 10 1530 1655 1705 1770 90-100
GTA 12 1870 1835 1895 1966 108-120
GTA 14 2390 2007 2076 2157 126-140
GTA 16 2250 2253 2332 2431 144-160
GTA 18 2890 2547 2635 2754 162-180
GTA 20 3230 2753 2851 2978 180-200
